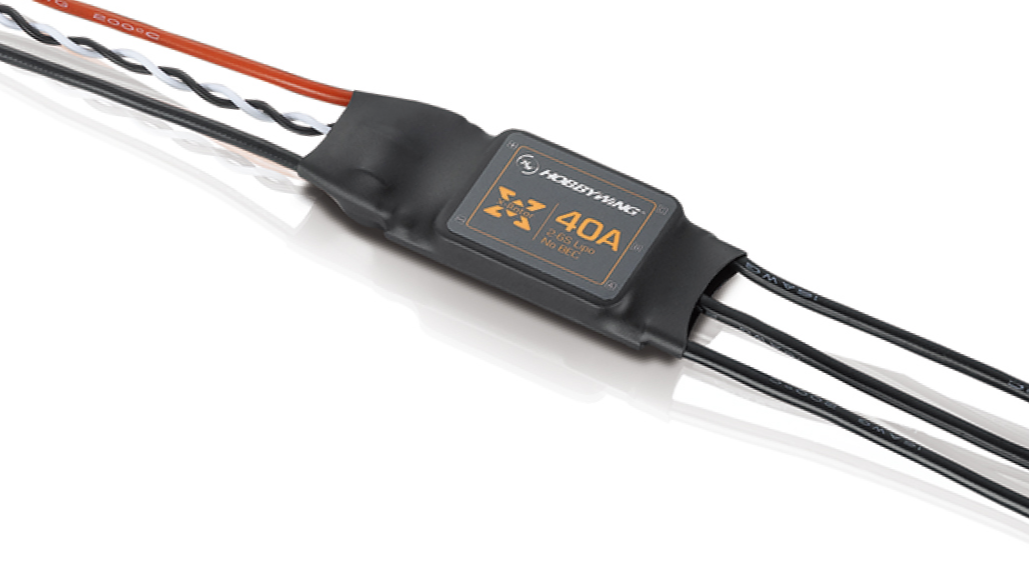

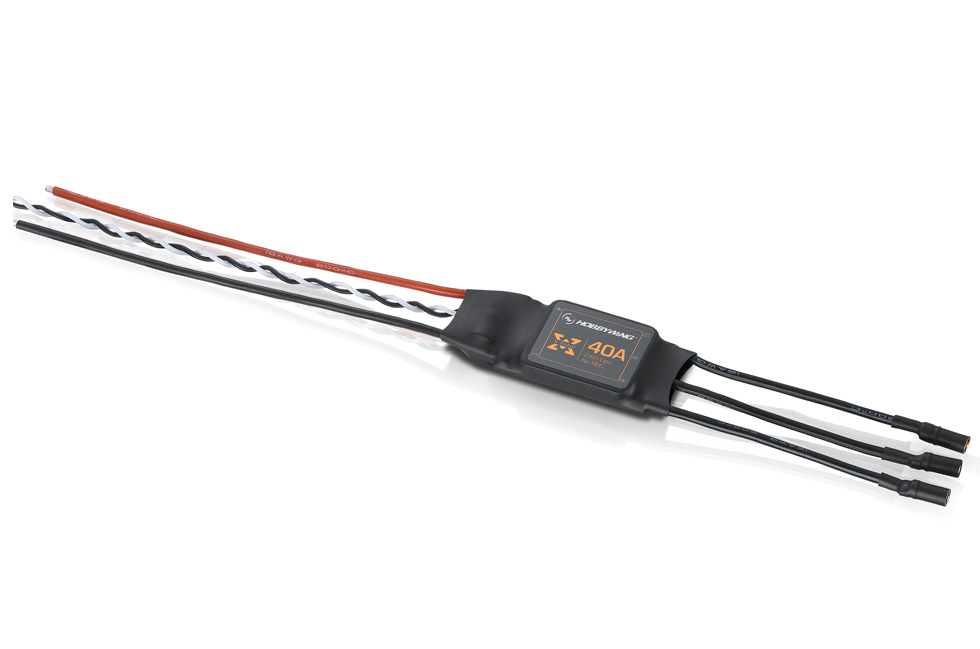

Hobbywing NEW Xrotor 40A ESC (wire)


멀티로터용 하비윙 40A ESC
출력 : Continuous 40A, burst 60A up to 10 seconds.
입력전압 : 2-6 cells li-po battery


Product ID: 16615 카테고리: , 태그: , , , ,

멀티콥터용 40A ESC 하비윙 NEW Xrotor (와이어타입)


1.1 rotor is special program, the throttle response speed, surpass all kinds of open source software;

1.2 firmware for disk motor optimization, have very good motor compatibility;

1.3 highly intelligent, adaptive ability, keeping only into the Angle set (Gao Jinjiao/into Angle), is extremely easy to use;

1.4 the throttle signal lines for twisted pair, effectively reduce the signal within the copper wire transmission of crosstalk, make flying is more stable;

1.5 up to support the refresh rate of up to 621 hz throttle signal, compatible with all kinds of flight control (note: more than 500 hz throttle signals are non standard throttle);

1.6 use special MOSFET driver chip, performance and stability than using discrete component of driving circuit;

1.7 low impedance MOSFET, strong resistance to flow ability.


Product Details:

– Output : Continuous 40A, Burst 60A up to 10 seconds
– Input Voltage : 2-6 cells lithium battery
– Refresh rate of the throttle signal : at least 400hz, up to 621hz.
– Timing : High or Intermediate
– Red Black cable length : 약9cm
– Signal cable length : 약15cm
– Plug:
– Size : 68 x 25 x 8.7mm
– Weight: 26g
