Hobbywing NEW Xrotor 40A ESC

멀티로터용 하비윙 40A ESC
출력 : Continuous 40A, burst 60A up to 10 seconds.
입력전압 : 2-6 cells lithium battery or 5-18 cells NiMH battery.
BEC: OPTO

17,400

Product ID: 2085 카테고리: 태그: , , , ,

업계 최초 지적도 담은 방제앱 바로가기





멀티콥터용 40A ESC 하비윙 NEW Xrotor



본 상품은 단종예정입니다. 다음 제품을 구매바랍니다.

HOBBYWING NEW XROTOR 40A ESC (WIRE)



Features:

1.1 rotor is special program, the throttle response speed, surpass all kinds of open source software;

1.2 firmware for disk motor optimization, have very good motor compatibility;

1.3 highly intelligent, adaptive ability, keeping only into the Angle set (Gao Jinjiao/into Angle), is extremely easy to use;

1.4 the throttle signal lines for twisted pair, effectively reduce the signal within the copper wire transmission of crosstalk, make flying is more stable;

1.5 up to support the refresh rate of up to 621 hz throttle signal, compatible with all kinds of flight control (note: more than 500 hz throttle signals are non standard throttle);

1.6 use special MOSFET driver chip, performance and stability than using discrete component of driving circuit;

1.7 low impedance MOSFET, strong resistance to flow ability.



Product Details:

– Output : Continuous 40A, Burst 60A up to 10 seconds
– Input Voltage : 2-6 cells lithium battery
– BEC : NO BEC
– Refresh rate of the throttle signal : Up to 621Hz
– Timing : High or Intermediate
– Red Black cable length : 12cm
– Signal cable length : 26cm
– Plug: 3.5 mm banana plugs
– Size : 68 x 25 x 8.7mm
– Weight: 26g

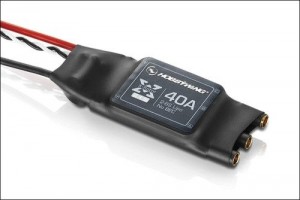

RAVENFURY_XROTOR_40A_1 RAVENFURY_XROTOR_40A_2 RAVENFURY_XROTOR_40A_3
