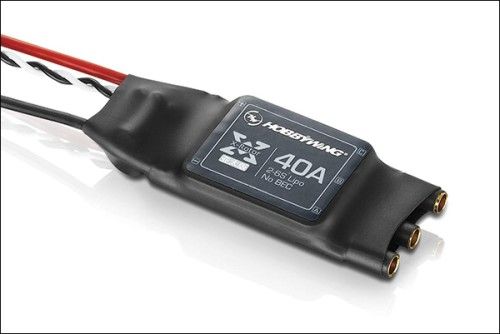

Hobbywing NEW Xrotor 40A ESC (wire)

,

멀티로터용 하비윙 40A ESC
출력 : Continuous 40A, burst 60A up to 10 seconds
입력전압 : 2-6S Li-Po or 5-18S NiMH
BEC: OPTO

17,400

품절

Product ID: 3633 카테고리: , 태그: , , , ,

멀티콥터용 40A ESC 하비윙 NEW Xrotor (와이어배선타입)

주의사항
모터 연결부 : 와이어 (약8cm)로 3.5mm bullet 콘넥터로 되어 있는 제품입니다. 아래 제품 사진을 참고 하세요!





Features:

1.1 rotor is special program, the throttle response speed, surpass all kinds of open source software;

1.2 firmware for disk motor optimization, have very good motor compatibility;

1.3 highly intelligent, adaptive ability, keeping only into the Angle set (Gao Jinjiao/into Angle), is extremely easy to use;

1.4 the throttle signal lines for twisted pair, effectively reduce the signal within the copper wire transmission of crosstalk, make flying is more stable;

1.5 up to support the refresh rate of up to 621 hz throttle signal, compatible with all kinds of flight control (note: more than 500 hz throttle signals are non standard throttle);

1.6 use special MOSFET driver chip, performance and stability than using discrete component of driving circuit;

1.7 low impedance MOSFET, strong resistance to flow ability.



Product Details:

– Output : Continuous 40A, Burst 60A up to 10 seconds
– Input Voltage : 2-6 cells lithium battery
– BEC : NO BEC
– Refresh rate of the throttle signal : up to 621Hz
– Timing : High or Intermediate
– Red Black cable length : 12cm
– Signal cable length : 26cm
– Plug: 3.5 mm banana plugs
– Size : 68 x 25 x 8.7mm
– Weight: 26g

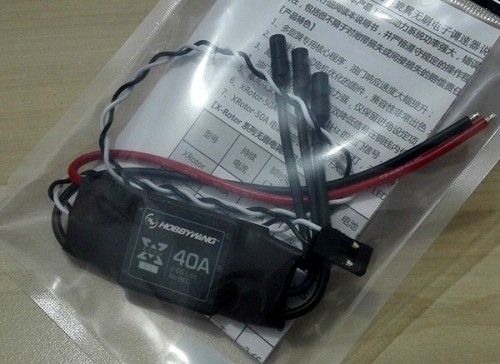

xrotor-40a-wire-1

RAVENFURY_XROTOR_40A_3
