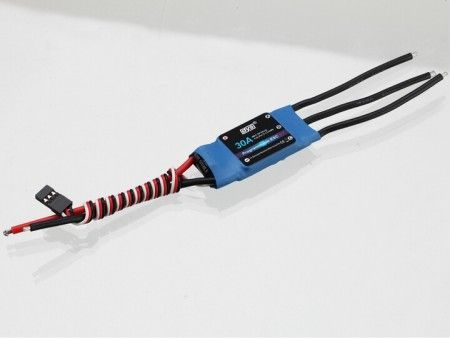

본 DYS 블루시리즈 ESC는 ESC는 중/소형 멀티콥터에 아주 잘 맞습니다. 본 제품은 30A(Burst 40A), 2셀에서 4셀(11.1V – 16.8V)을 지원합니다.
l Drive tube and high-power Mos, and Mos tube plus a separate heat sink, Extreme low output resistance of the PCB(printed circuit board),super current endurance.
2 The power input uses extreme low output resistance greatly enhance the power stability, and has the protective effect on the battery.
3 Safety electrical function: when the power is turned on, regardless of the throttle stick in any position does not start the motor immediately, to avoid personal injury.
4 Separately voltage regulator IC for microprocessor. providing good anti-jamming capability.
5 Supported motor speed (Maximum): 210000 RPM (2 poles), 70000 RPM (6 poles), 35000 RPM (12 poles).
6 Using Simon K’s a dedicated multi-copter program tgy_debug, and the master chip with high stability crystal oscillator, making the motor control to more precise.
1 Running current:30A(Output: Continuous 30A, Burst 40A up to 10 Secs.)
2 Input Voltage: DC 6-16.8V(2-4S Li-po)
3 BEC: 5V 2A
4 Size: 46mm (L) * 26mm (W) * 11mm (H).
5 Weight: 23g
6 With SimonK updated firmware for multicopter (Refresh Rate : 333Hz)
