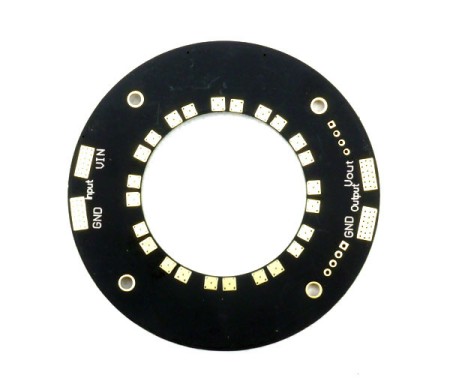

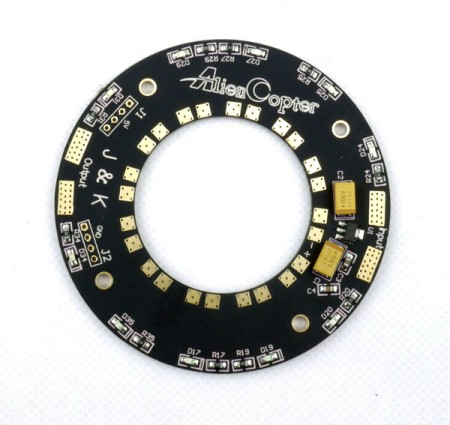

This is a power distribution hub specially designed for multi-rotor speed controller connection.
It makes the wiring of your multi-rotor system neater, nicer, securer.

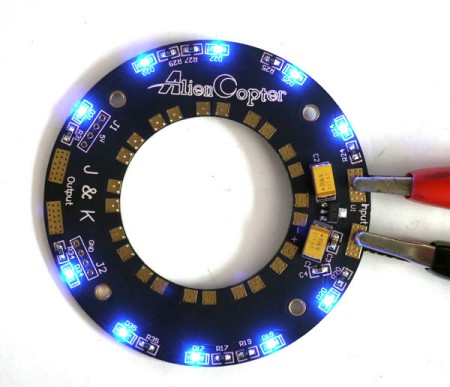

– With LED lights.
– 2 sets welding points for main power supply
Suit for multicopters up to 800mm in rotor spacing and working current no higher than 100A.
1. Weld the power input wires of ESCs to the hub, suggested inner circle for ”+”, and outter circle for ”-”.
2. Isolate the hub with tape or shrinking tube, or use double side tape to fix it to the main frame of your multi-rotor aircraft.
-J&K Universal 12-way 100A Multi-rotor Power Distribution Hub W/ LEDs
-Max ESC number: 12
-Outer diameter: 77mm
-Inner diameter: 40mm
-Max voltage supported: 6S (the voltage regulating chips for LEDs will be burned when exceeding 6S for power input)
