Hobbywing NEW Xrotor 10A ESC (wire)

,

멀티로터용 하비윙 10A ESC
출력 : Continuous 10A, burst 15A up to 10 seconds.
입력전압 : 2-3 cells li-po battery
BEC: OPTO

12,000

6개 재고

Product ID: 3894 카테고리: , 태그: , , , ,

멀티콥터용 10A ESC 하비윙 NEW Xrotor (와이어타입)

주의사항
모터 연결부 : 약8cm 와이어로 되어 있는 제품입니다. 아래 제품 사진을 참고 하세요!





Features:

1.1 rotor is special program, the throttle response speed, surpass all kinds of open source software;

1.2 firmware for disk motor optimization, have very good motor compatibility;

1.3 highly intelligent, adaptive ability, keeping only into the Angle set (Gao Jinjiao/into Angle), is extremely easy to use;

1.4 the throttle signal lines for twisted pair, effectively reduce the signal within the copper wire transmission of crosstalk, make flying is more stable;

1.5 up to support the refresh rate of up to 621 hz throttle signal, compatible with all kinds of flight control (note: more than 500 hz throttle signals are non standard throttle);

1.6 use special MOSFET driver chip, performance and stability than using discrete component of driving circuit;

1.7 low impedance MOSFET, strong resistance to flow ability.



Product Details:

– Output : Continuous 10A, Burst 15A up to 10 seconds
– Input Voltage : 2-3 cells lithium battery
– BEC : NO BEC
– Refresh rate of the throttle signal : at least 400hz, up to 621hz.
– Timing : High or Intermediate
– Red Black cable length : 약9cm
– Signal cable length : 약15cm
– Plug:
– Size : 36.5 x 16.4 x 4.1mm
– Weight: 6.5g



Model

Con.
Current

Peak Current
(10s)

BEC LiPo Programmable Item Weight Size

Typical Applications*
(For reference)

XRotor-10A 10A 15A No 2-3S

Timing
(High/Intermediate)

6.5g 36.5 x 16.4 x 4.1 250 Class Quadcopter
XRotor-20A 20A 30A No 3-4S Timing
(High/Intermediate)
14g 52.4 x 21.5 x 7

330/450 Class
Quadcopter

XRotor-40A 40A 60A No 2-6S Timing
(High/Intermediate)
26g 68 x 25 x 8.7

550/650 Class
Quadcopter

XRotor-50A 50A 70A No 2-6S

Timing
(High/Intermediate)

LED (On/Off)

LED Color (Red/Green)

Motor Rotation
(CW/CCW)

46g 48 x 30 x 15.5

Over 650 Class
Quadcopt

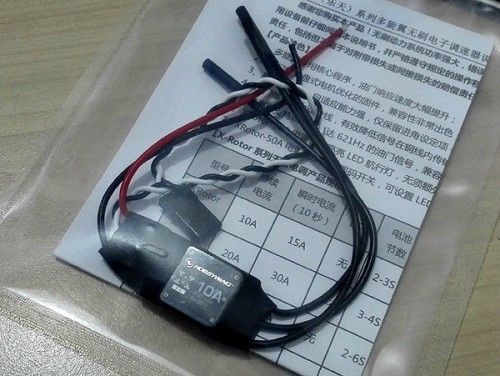

hobbywing-xrotor-10a-2



RAVENFURY_XROTOR_40A_3
