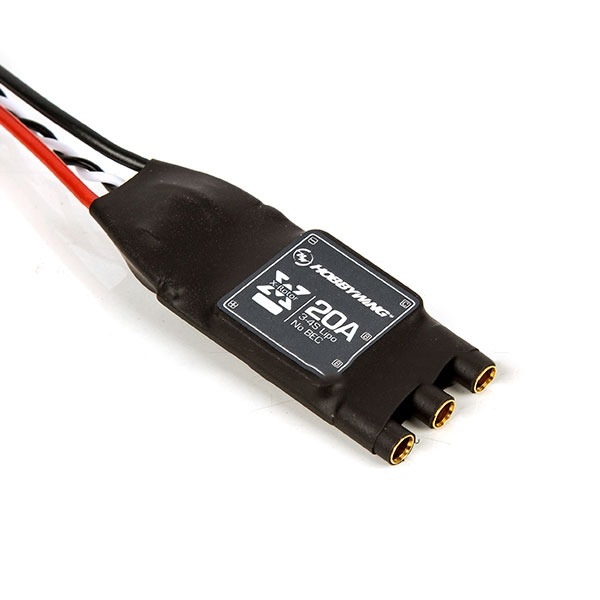

[HobbyWing] XRotor 20A ESC(COB)

Continous current: 20 Amp

Battery : 4~6 Lipo

Weight : 14g

13,800

품절

Product ID: 9992 카테고리: 태그: , , ,

[HobbyWing] XRotor-20A ESC For Multicopter



세계 최대의 변속기 메이커 하비윙사의 멀티콥터 전용 ESC Series.

복잡한 변속기 프로그래밍을 최대한 단순하게 설계, 범용성이 뛰어나고 멀티콥터에 최적화된 리니어 리스펀스를 구현한 멀콥 전용 변속기.(Opto 방식)



<Features>
The Hobbywing X-Rotor series ESC is a good quality multirotor speed controller. They have a broad range of programming features combined with a linear throttle curve.
• Extreme low output resistance
• Multiple protection features: Low-voltage, cut-off protection / over-heat protection
• 3 start modes: Normal, Soft, Super-soft
• Throttle range can be programmed
• Smooth, linear and precise throttle response.
• Supported motor speed (Max): 210000 RPM (2 poles), 70000 RPM (6 poles), 35000 RPM (12 poles)

<Specifications>
• Continous current: 20 Amp
• Burst current: 30 Amp, 10 Sec
• BEC Mode: Linear
• Battery: 3-4 LiPo
• Weight: 14g
• Dimension: 52.4*21.5*7mm
• Suit for 330-450mm wheelbase multicopters
• Motor plug type:3.5mm banana connector
