KDE Direct ESC KDEXF-UAS35HVC

35A ESC

입력전압 : 11.1 V (3S LiPo) – 52.2 V (12S LiHV)

무게 : 54 g (84 g with Wires/Bullets)

204,600 178,000

Product ID: 10517 카테고리: 태그: , , , , , ,

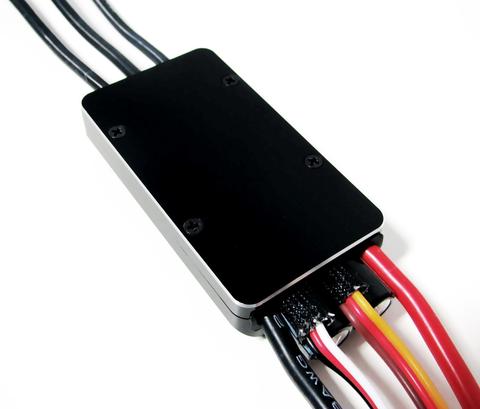

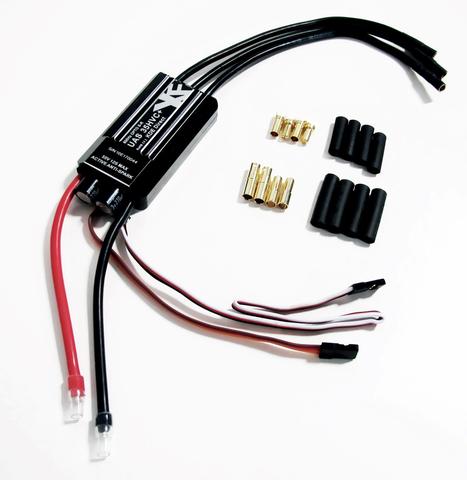

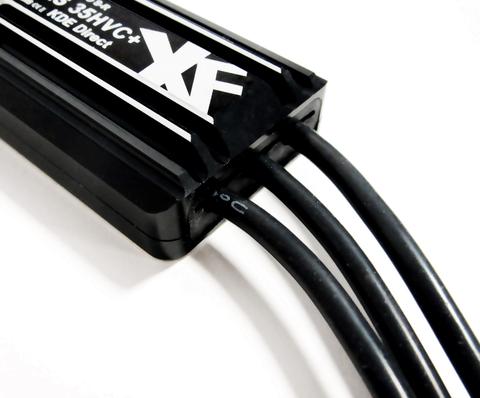

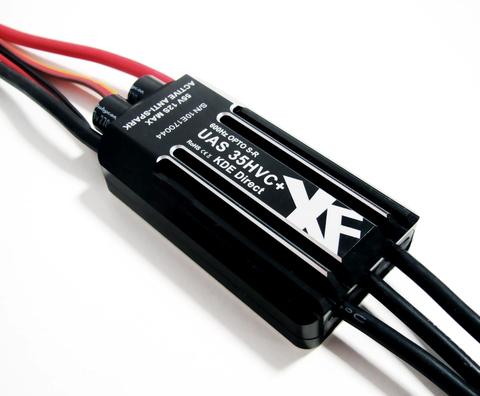

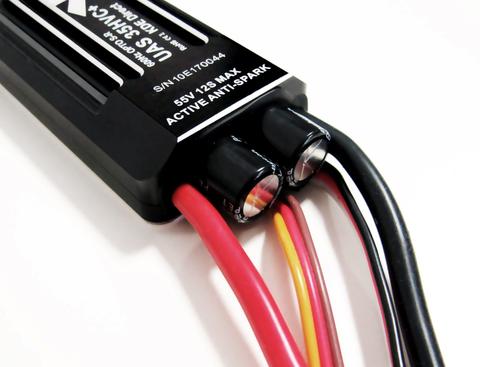

KDE Direct ESC KDEXF-UAS35HVC



35A+HV Electronic Speed Controller (ESC) for Electric Multi-Rotor (UAS) Series







Dimen Spec 보기 35A_HVC_ESC

SPEC :

Refresh Rate 600 Hz (50 – 600Hz Adaptive)
Maximum Peak Current 60 A (5 s)
Maximum Peak Power 2,665 W (5 s)
Maximum Continuous Current* 35+ A (180 s)
Maximum Continuous Power* 1,555+ W (180 s)
Maximum Efficiency > 98%
Voltage Range 11.1 V (3S LiPo) – 52.2 V (12S LiHV)
Internal BEC None (Opto-Isolation)
Maximum RPM 360,000 rpm (2-Pole)
PWM Rate Adaptive Dynamic Algorithm
Advance Timing 22° – 30° Dynamic Algorithm
ESC Size 35 mm (W) x 63 mm (L)
ESC Weight 54 g (84 g with Wires/Bullets)
Power Leads 13 AWG, 200°C
Motor Leads 14 AWG, 200°C
ESC Control Lead 22 AWG, 3-Wire JR (W-R-B)
ESC Programming Lead 22 AWG, 3-Wire JR (O-R-B)
Power Connects ф3.5 / ф4.0 mm Matched Pair
Motor Connects ф3.5 mm Female
