ALIGN G3-5D 3 Axis Gimbal for Canon 5D MKII/III

G3-5D 3축 Gimbal

Cannon 5D Mark II&III or 표 참조

무게 : 약 1,250g

1,640,000

Product ID: 3336 카테고리: 태그: , , , , , ,

Align G3-5D Canon 5D Mark II/III 3축 Gimbal



G35D-1

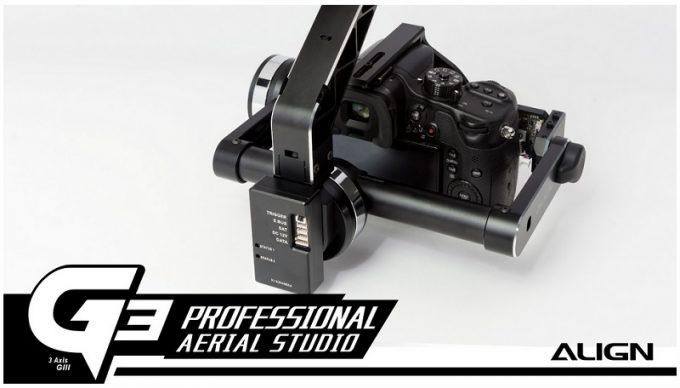

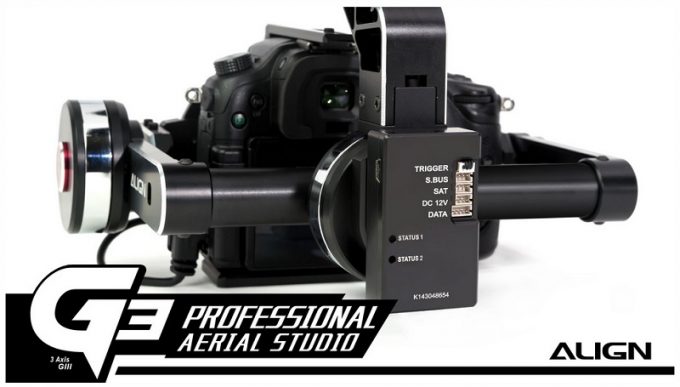

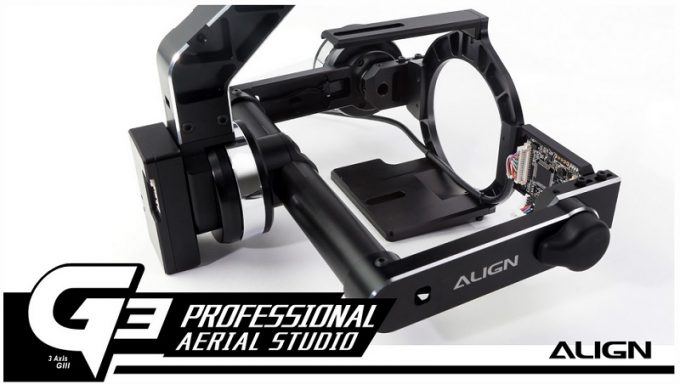

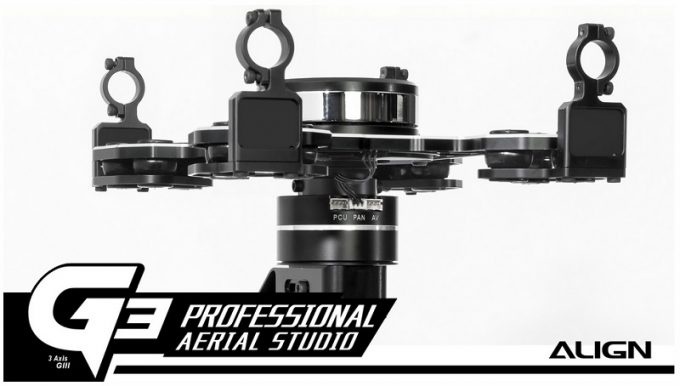

Align G3 gimbal features an advanced control system with superior computational power. The highly integrated design allows for quick conversion between multicopter use and hand held use. Adjustable balance point on all 3 axis for greater camera compatibility, while the high precision brushless motors provide excellent agility and stability. Built in HDMI/AV converter and RC receiver connectivity. Supports programmability through PC interface, or connectivity to iOS/Android smartphones through Bluetooth. Equipped with automatic calibration function during power up. Supports single RC transmitter mode through APS-M, or independent remote control of the gimbal through a dedicated RC transmitter, as well as remote shutter trigger and video start/stop control to capture the optimal footage through precise framing.



G3GH-10

G3GH-2



Mechanical Dimension

G35D-2G35D-3

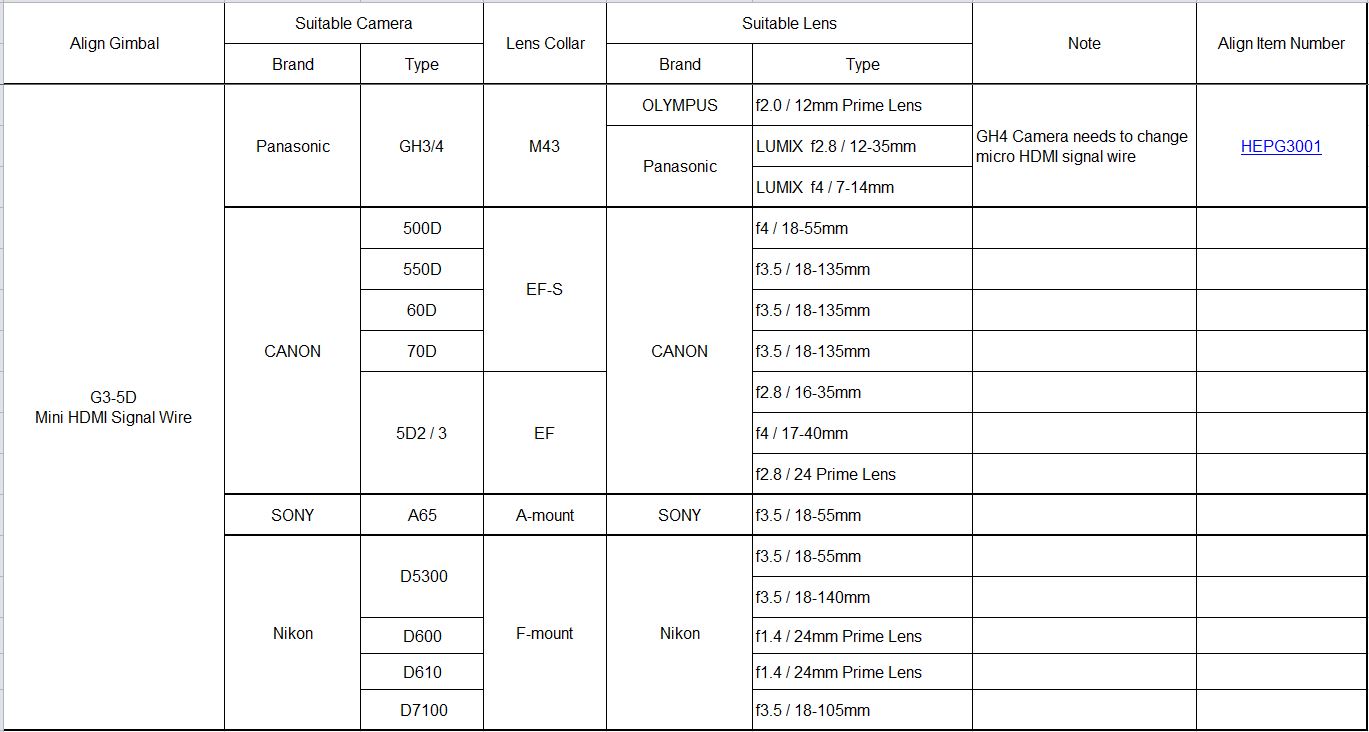

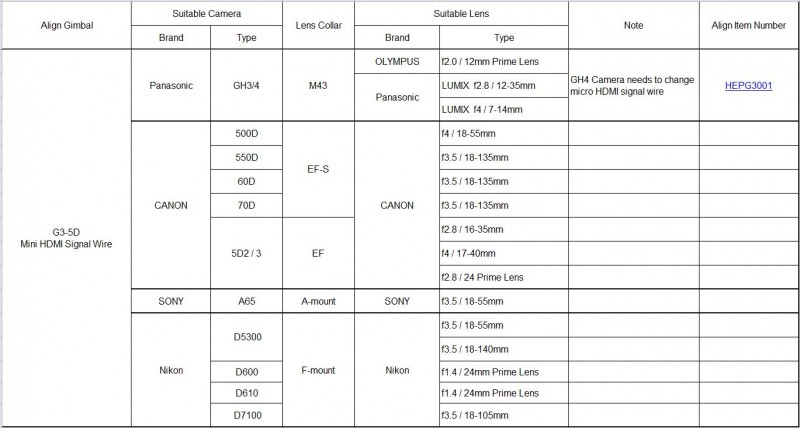

G3-GH Gimbal/Camera/Lens Compatibility List (For Reference)

G35D-4





Gimbal Controller Specification

  • Input Voltage: DC 12V(3S)
  • Current Draw: <500 mA@12V
  • Maximum Control Range:
    • PAN 360°
    • ROLL ±30°
    • TILT 90°
  • Maximum Control Rotation Rate:
    • PAN 60°/s
    • ROLL 60°/s
    • TILT 60°/s
  • Temperature Range: -20~80°C
  • Voltage Output:5V / 0.5A
  • Dimension: 59.5x35x16.4mm



HDMI-AV(Digital to Analog) Converter Specification

  • Input Voltage: DC 12V(3S)
  • Power Consumption: 1800mW (12V/150mA)
  • Compatible Cameras: G3-5D: Canon 5D or equivalent.
  • Supported Output Format: 1800mW/ 50HZ/60HZ;720P/ 50HZ/60HZ;576P/ 50HZ/60HZ;480P/ 50HZ/60HZ;1080I/ 50HZ/60HZ;576I/ 50HZ/60HZ;480I/ 50HZ/60HZ
  • Video Output Format: NTSC(480I)
  • Signal Output Resistance: 75Ω
  • Temperature Range: -20~65°C (-4 ~ 149°F)
  • Dimension: 42x32x7mm



Includes :

  • Gimbal Anti-shock Assembly
  • Camera Mounting Block
  • Camera Top Bracket
  • Camera Fixing Screw
  • Rubber Damper 30º & 40º
  • Allen Wrench 2mm & 2.5mm
  • Signal Cable Set
    • S.BUS Signal Wire * 1
    • G3 AV Signal Wire * 1
    • G3 Gimbal Power Wire * 1
    • DC 12V Power Wire * 1
    • 16V Voltage Booster * 1
    • Level * 1





각 부가장치별 연결도

Align-wiring-diagram

GH-5D 사용자 메뉴얼

짐발 파라미터

Align 다운로드

Aling Gimbal Q&A
