Tarot X8 1125mm T1000 Pro Octocopter Frame Kit


휠베이스 1125MM 대형 옥토콥터

산업용, 항공촬영용

권장프롭 : 15~16 inch

권장베터리: 15C, 22.2V, 10000-2000MHA

권장 ESC : 6S Brushless 30A ~ 50A ESC

순수기체중량 : 3,420g


Product ID: 16324 카테고리: , 태그: , , ,

2021년형 드론방제사 전용 방제앱 할인 판매 바로가기

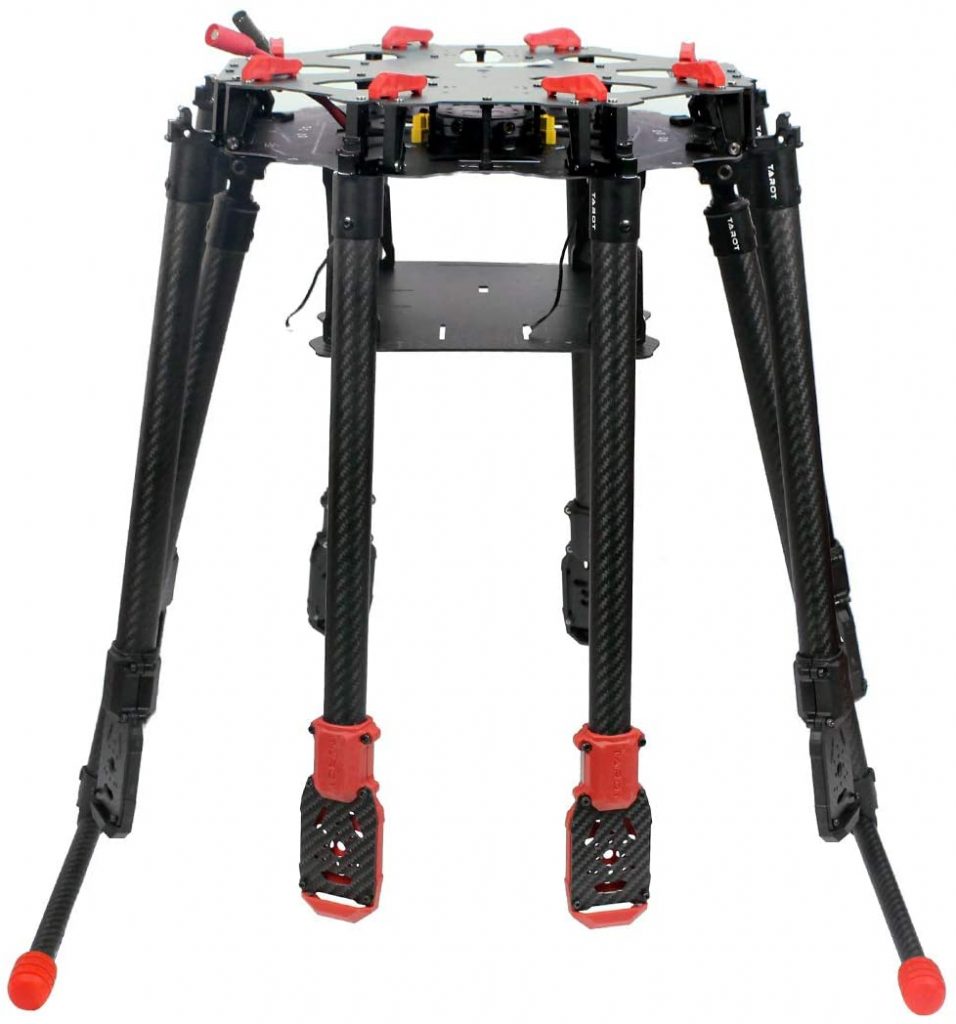

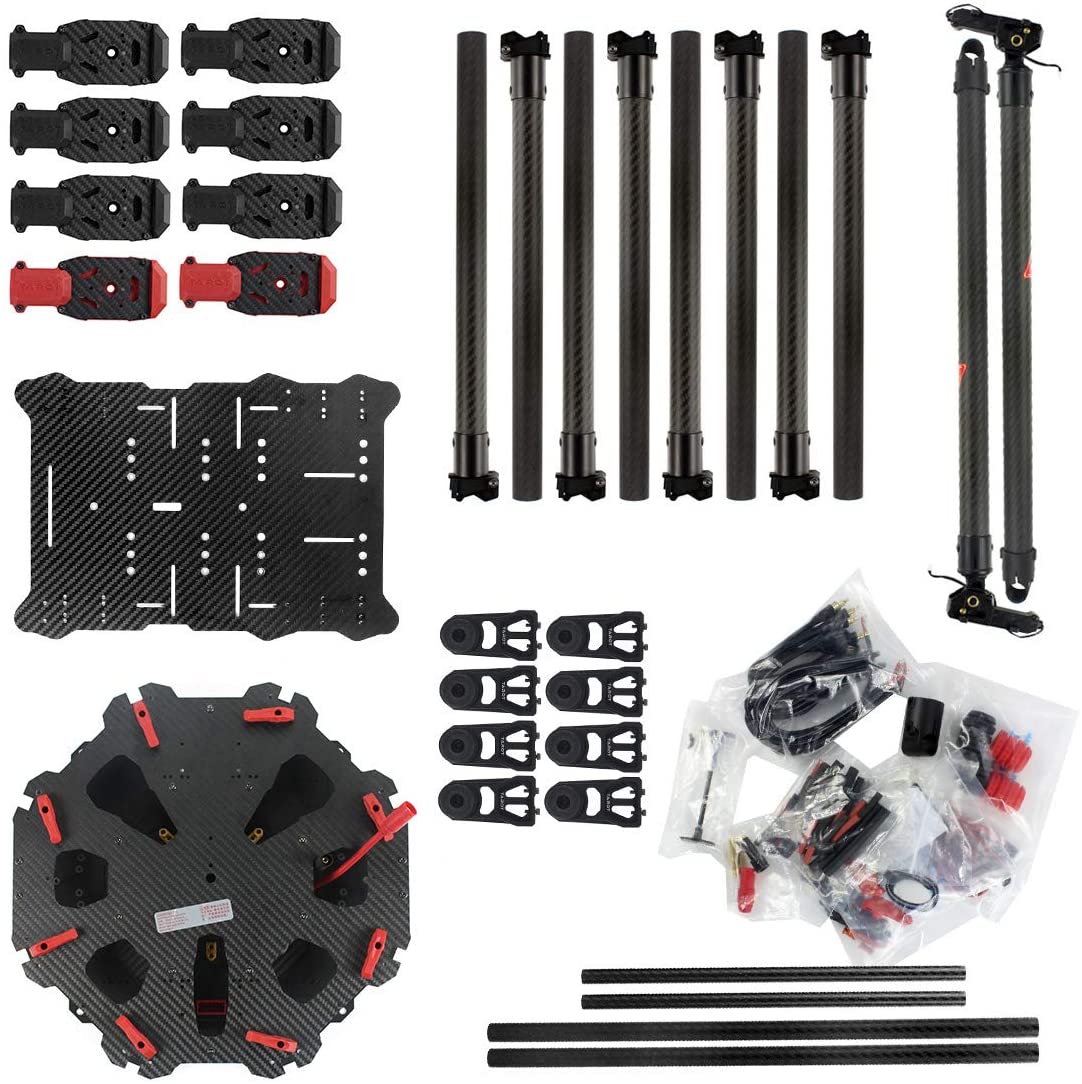

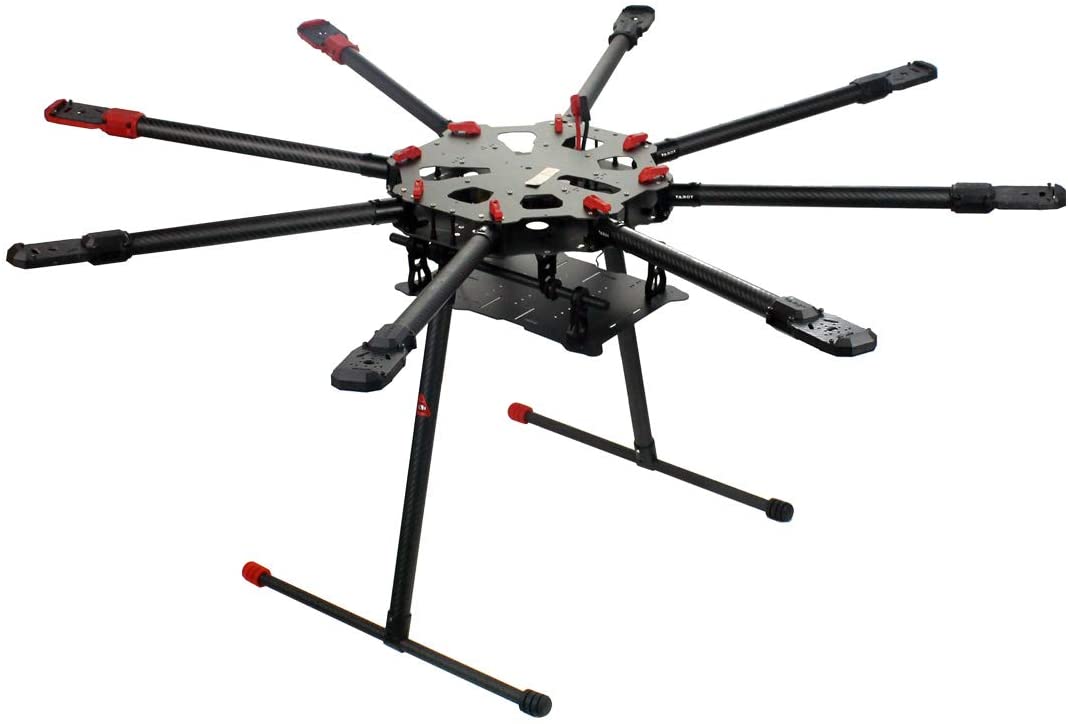

Tarot X8 1125mm 대형 옥토콥터 프레임 키트



Product Description:

TAROT X8 multiaxial for professional aerial photography aircraft is designed for users of a multi-axis flight carrier, standard new electric contraction folding tripod, umbrella folding machine arm, integrated PCB board wiring the power, more efficient power transfer and other connections safety, provide adequate space for the installation of various flight control systems.
8 rotors provide sufficient power, even if one axis unexpectedly stop working, but also to ensure that the aircraft is in a stable condition. Whole has lightweight, portable and convenient. Maximum take-off weight of about 10KG, easily carrying 5D level aerial equipment, with 15 minutes of battery life, as well as 12 minutes of effective working time.
State Intellectual Property has been granted TAROT HM Ltd. This product five patents:
patent number patent number: 2014204282854
patent number patent number: 2014203682366
patent number patent number: 2014302624585
patent number patent number: 2014301541104
patent number patent number: 2014302583208


Product Specifications:

– Symmetric Motor Wheelbase: 1,125mm
– Folding propeller Specifications: 15~16 inch
– Arm length: 395mm
– Arm Weight: 122g
– Centre plate diameter: 335mm
– Undercarriage clearance height: 490mm
– Battery Specifications: 22.2V, 10,000mAh ~ 22000mAh
– 6S Brushless ESC: 40A
– Maximum power consumption: 4000W
– Hover Power: 1800W (11.0KG)
– Hover Time: 15~20mim(Depend on Payload)
– Working temperature: -10 ℃ ~ 40 ℃
– Weight: 3.42kg(w/o Battery)
