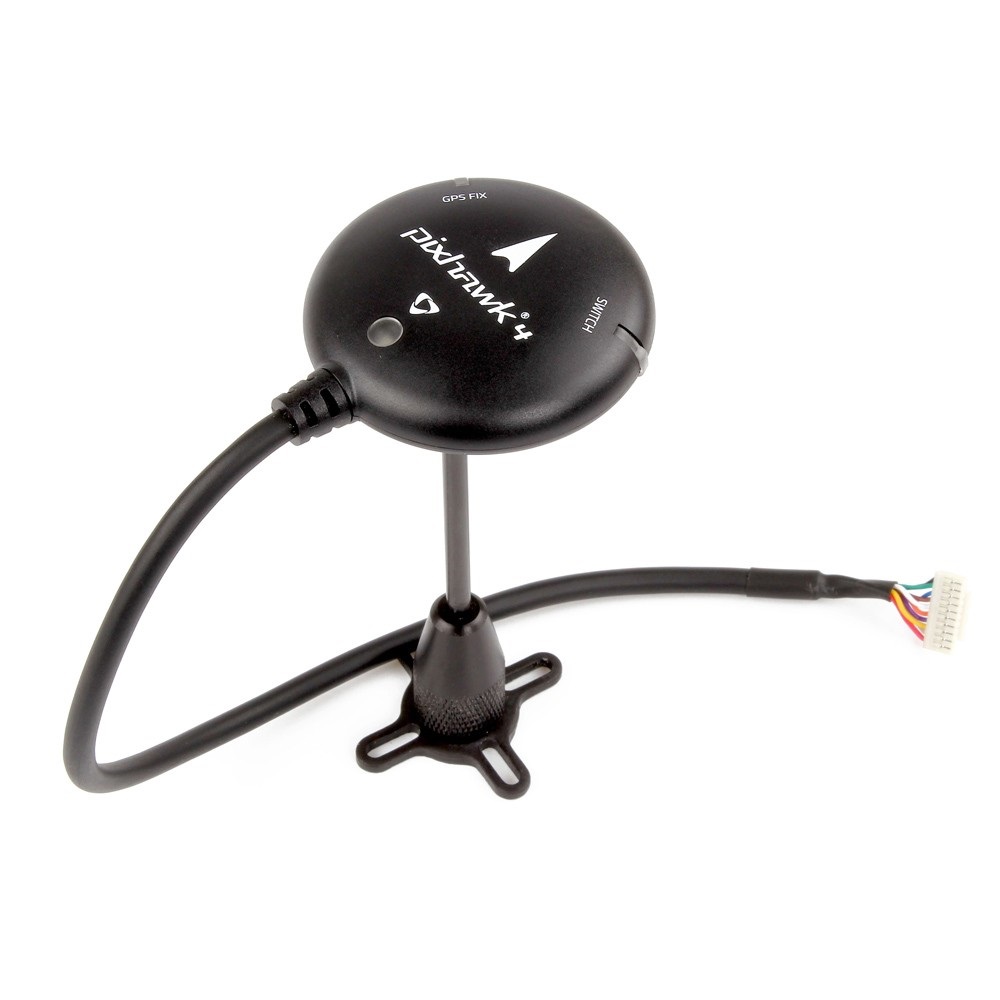

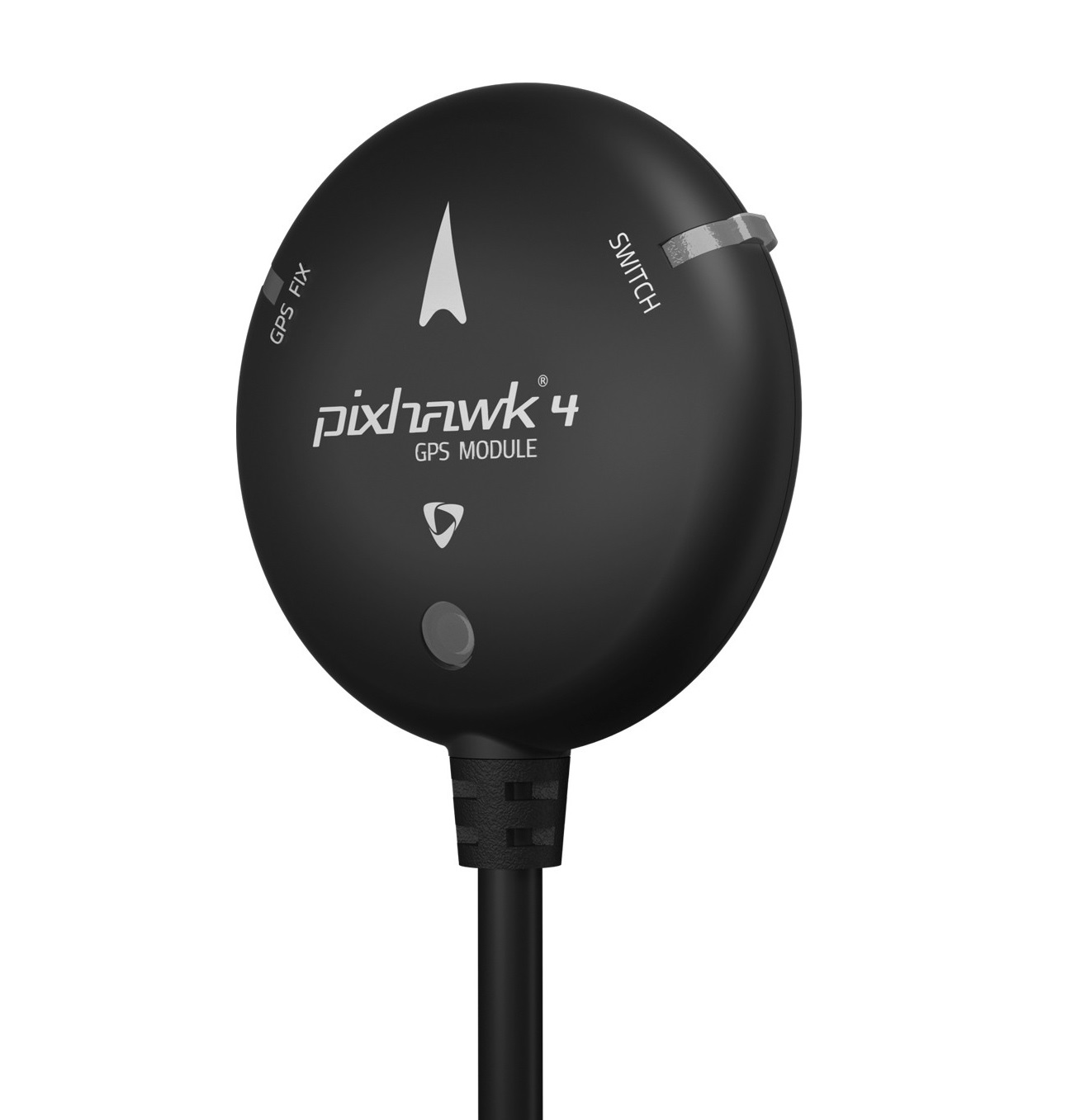

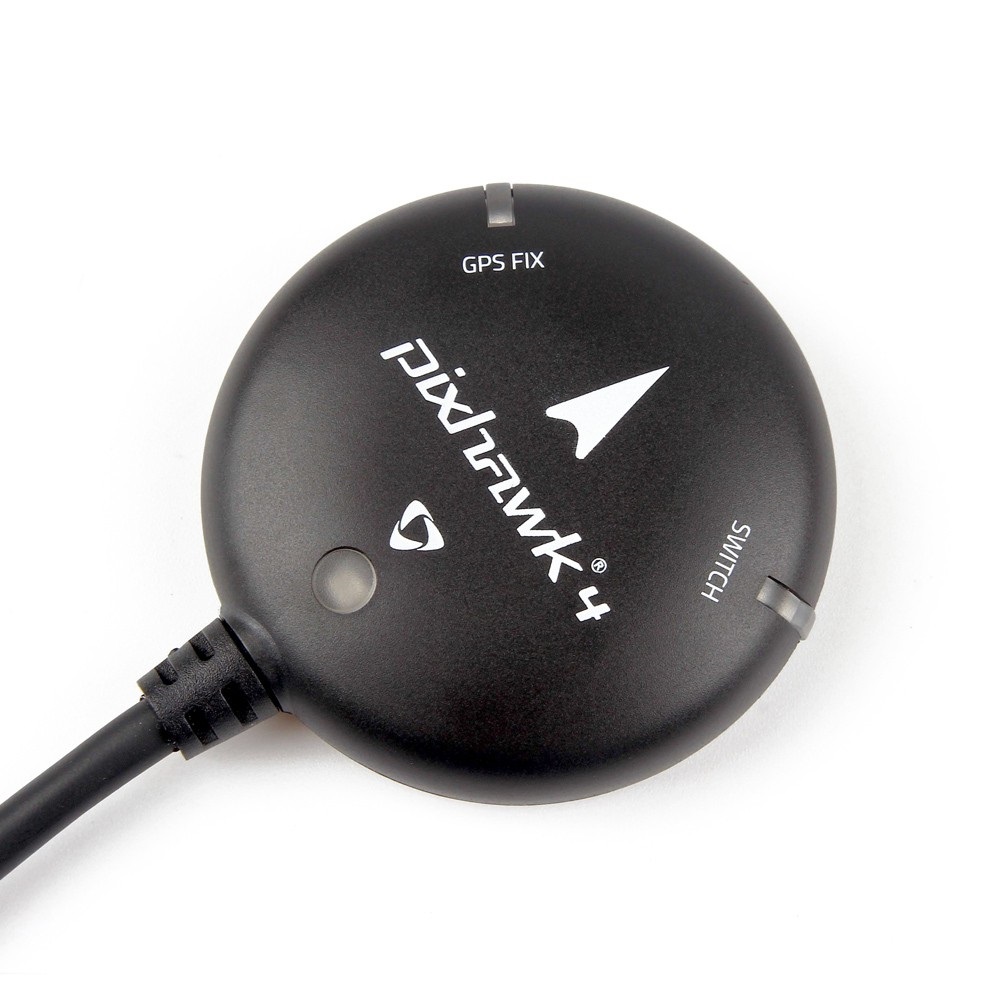

We empoldered this new GPS for you to work with PIXHAWK4.
It has UBLOX M8N module on it, as well as IST8310 compass and tri-colored LED indicator. Also the Safety switch on it will make the connection more convenient and simple.
This module ships with a baud rate of 38400 5Hz
Features and Specifications:
– Ublox Neo-M8N module
– Industry leading –167 dBm navigation sensitivity
– Cold starts: 26s
– LNA MAX2659ELT+
– 25 x 25 x 4 mm ceramic patch antenna
– Rechargeable Farah capacitance
– Low noise 3.3V regulator
– Fix indicator LEDs
– Protective case
– 26cm Pixhawk4 compatible 10-pin cable included
– Diameter 50mm total size, 32 grams with case.

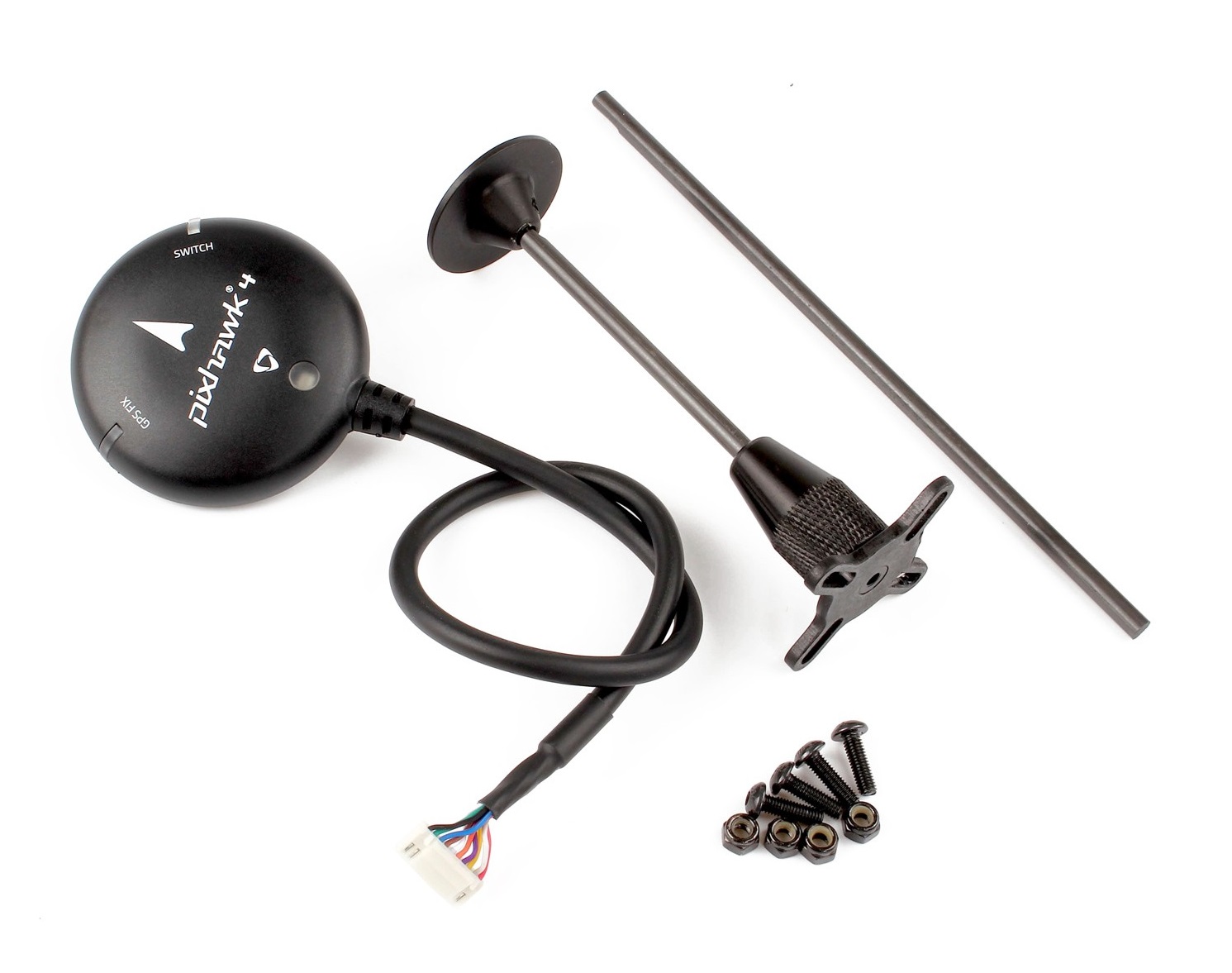

– NEO-M8 with compass module *1
– ‘X’ type folding pedestal mount *1
– Carbon rod 70mm & 140mm *1
