드론자격증 실기 교육용 드론 Kit X4-10P

, , ,

1380mm 휠베이스 컴팩트사양

산업용 및 교육용 / 항공촬영기체용 쿼드콥터드론 Kit 제품

FC, 모터, 변속기, 조종기, 배터리 별매

KC 인증 번호 : KR18-SEK0923





1,899,000

X4-10P-EDU Super Grille Quad-Copter Industry/Education Kit



[SHR] X4-10PEDU Super Grille Quad-Copter for Industry/Educational Drone Kit

현존 최강의 산업용/교육용, 항공촬영시 안정적인 기체 드론!

Dream Eagle사의 X4-10 Super Grille 세번째 Edition!



레이븐퓨리에서 방제종합관리솔루션 베타버전의 개발을 완료하고 전국구 방제사를 모집 하고 있습니다. 방제사 등록을 누르시면 상세 페이지를 새로 엽니다.

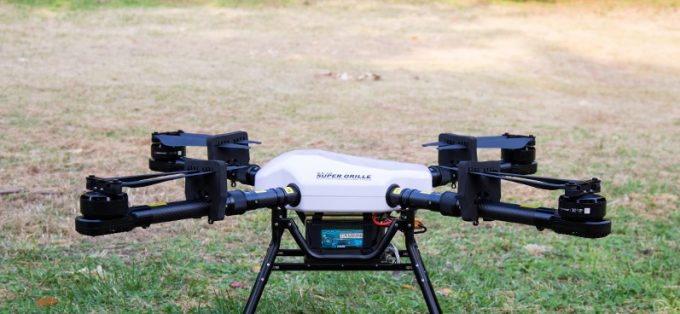

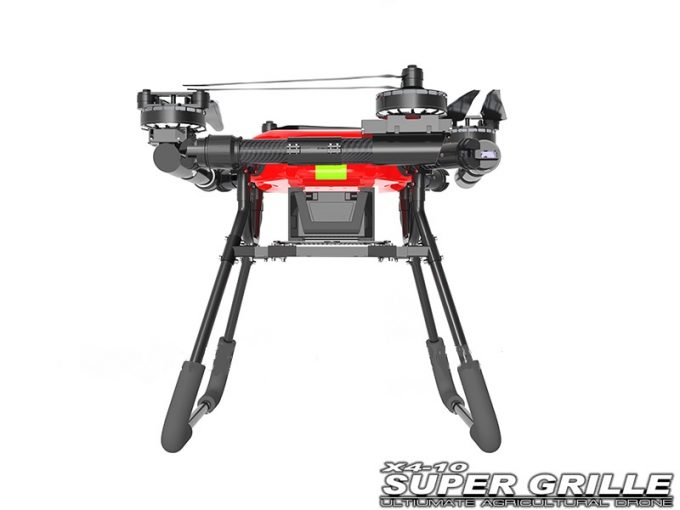

X4-10PEDU 버젼은 QuadCopter 기반의 방제 드론으로서 1380mm 휠베이스 사양의 산업 및 교육용으로 사용되는 대형 쿼드 콥터입니다.



기존 X4-10에서 더욱 더 Compact한 사이즈로 경쾌한 기동성을 가지고 있으며, 빠른 배터리 장/탈착을 위한 Sliding Type의 Battery Tray Module과 견고한 Trust 구조의 랜딩기어 시스템을 탑재하고 있습니다.

아울러 SHR만의 전매특허! – 대형 모터 및 프롭을 타고 들어오는 저주파 진동이 프레임에는 전혀 영향을 미치지 않게끔 Float Bedding 방식의 프레임 댐퍼를 채용, IMU에 미치는 진동을 원천적으로 차단, 대형기 특유의 오르락 내리락 거리는 Leveling 문제가 없게끔 특화된 프레임 시스템을 구현하고 있습니다.

또한 강화형 ABS 사양의 프레임(Carbonless)을 사용, 극한의 습도가 높은 상황에서도 FC 및 GPS, 펌프 변속기 등과 같이 습도에 민감한 전자 장비에 영향을 미치지 않게끔 방수처리 가공되어 있으며,

1380mm 휠베이스의 대형 프레임에도 불구하고 승용차 뒷좌석에 수납이 되는 Side Folding 방식의 컴팩트한 구조 등 사용자 편의성에 주안점을 둔 최고급 방제 드론 사양입니다.(12S/44.4V Setup)

모터 변속기는 HobbyWing사의 Xrotor8 시스템을, 배터리는 10,000~22,000mAh 2Pack 장착(직렬 12S 구성)이 가능합니다.

주의 : 본 제품은 X4-10P Frame 순수Kit 제품으로  랜딩 스키드 일체 및 배터리 트레이 모듈로 구성되어 있으며,

        비행제어장치(FC),모터, 변속기, 프롭, 조종기, 배터리 등은 제품에 포함되어 있지 않습니다.



Sliding Type Battery Tray 및 랜딩스키드 참고 사진

The model of X4-10P-EDU Super Grille is an economical and practical spraying platform, it is designed for farmers who possess 200-700 acres of planting scales. Using  X4-10P-EDU Super Grille agricultural drone can reduce working costs effectively and improve the working efficiency. Compared with the traditional manual spraying, it reduces the labor intensity of the workers and avoids workers breathing pesticide particles. In order to optimize the structure design, this agricultural drone has been tested many times. The drone has the advantages of flexible and stable, simple operation, safe and reliable, simple maintenance and low maintenance costs. It applies to the the majority of agricultural users.

<Features>
1, The fuselage uses the enclosed design and effectively prevents the pesticide to enter the interior of the flight control system. It can provide working security for a long time.
2, The agricultural drone has built-in GPS and compass module. It provides a flight function with fixed height and fixed point and can maintain a good operation of spraying height and accurate spraying line.It can set and limit the height of spraying and it also can limit the flight speed. The effect of liquid atomizing is good in high-pressure spraying system.
Under the air pressure, pesticide fog has a characteristic of strong penetrating. Pesticide particles can reach the stem and the back of leaves of crops.
3, Its function component has a modular design, and it is convenience for maintenance and upgrade.



– 신형 X4-10P만의 전매 특허!

   H-Type 트러스트 구조의 배터리 레일 마운트를 장착, 아울러 하부에 각종 Device(Computer Module, 측정 장비 등등)를 자유롭게 마운팅 할 수 있도록 설계, 교육용 드론 뿐만 아니라 각종 연구 및 산업용 드론 등 다방면으로 활용이 가능합니다.

– 스플릿 타입의 신형 배터리 커넥터 베이.

  슬라이딩 방식의 배터리 트레이와 더불어 스플릿 타입의 배터리 트레이가 기본사양으로 장착되어 있어 빠른 배터리 교환이 가능합니다.

– 중형차 이상의 승용차에도 뒷좌석에 2대가 여유있게 수납됩니다.

대용량 480A Power Distribution 전원 보드 채용 – Plug&Play 방식으로 간편하게 조립 및 정비가 가능하며,

전동 Pump 및 기타 외부 장치(Peripheral Device)들을 연결할 수 있도록 2개의 6S(22.2V) 포트를 별도 장착,

일일이 납땜을 하지 않고 편리하게 연결할 수가 있습니다.

<Specifications>

Model
X4-10P Quad Educational/Industry drone
Diagonal Wheelbase 1380mm
Frame Arm Length 528mm
Max Unfold Size 990mm*990mm*550mm
Power Supply Board 12S 480A



<Performance Parameters>

Total Weight(w/o Battery) 9.2kg
Standard Takeoff Weight 23.4kg
Max Takeoff Weight 25kg
Power Battery 10,000mAh~22,000mAh(6S) x 2 Set(12S)
Max Power Consumption 6,500W
Hovering Power Consumption 3560W(@ Flying Weight 22.9kg)
Hovering Time 24min(@12000mah/Flying Weight : 12.9kg)
11.5min(@12000mah/Flying Weight 22.9kg)
Max Operating Speed 7m/S
Recommended Operating Temperature 0℃ to 40 ℃



<권장 구매 사양>

– 조종기 : 8ch 이상 조종기

– Flight Controller : TopXGun T-1A 방제 드론용 FC

– Motor & ESC : HobbyWing XRotor8 Power System(CW/CCW)

– Battery : 10,000~22,000mAh 6S1P Pack x 2 Set



<제품 이미지 – Main Frame Section>

주의 : 메인 프레임 내부 섹션은 X4-10 및 X4-10P 모두 공통 사항입니다.



– Float-Bedding 방식의 메인 프레임 사양.

 메인 프레임은 프레임 암(Metal Main Frame Hub)에서 완전히 독립적으로 분리되어 있으며,

4개의 대형 Damper-Rim으로 연결되어 Arm을 타고 들어오는 저주파 진동을 원천적으로 차단, 진동이 FC에 미치는 영향을 최소화 합니다.
