[PT] S5010 Motor(360KV/6S, w/MR Adap)


5010 360KV/6S

가용프롭사이즈 : 14~15인치


Product ID: 16611 카테고리: ,

[PolyTronics] S5010 Motor(360KV/6S/15in Prop)


PolyTronics사의 미들급(700~960mm Wheel base) 멀티콥터용 경량 S5010 Motor.(360KV)

6S(22.2V) 기반의 14~15in Prop에 적합하며, 쿼드 기준 AUW 5.0Kg, 헥사 기준 AUW : 7.5Kg, 옥토 기준 AUW : 10Kg 대역의 멀티콥터에 사용됩니다.

본 패키지에는 MR Type 프롭 사용에 필요한 전용 프롭 어댑터가 포함되어 있습니다.(프롭은 별매입니다.)

골드 커넥터(G3.5) 및 수축 튜브, Hexa 볼트 포함.





1. Full CNC Machined aluminum front housing with four fan-style cooling holes that pump air through the motor while it runs.

2.Rear threaded mounting holes with both 16 mm and 19mm hole spacings fit a variety of applications.

3.Specially designed NdFeB magnets with high temperature rating for trouble-free operation.

4.High Temperature 140 C (356 F) rated wire is used for winding the motors to minimize the risk of burning up the motor.

5.High quality stator plates are epoxy coated on the inner surface to prevent winding shorts. 0.20mm stator plate id used on this motor 5010.

6.High quality shielded and permanently lubricated ball bearings are used to support the motor shaft in all our motors.

7.High temperature adhesives are used to secure the stator windings and prevent them from shifting and getting pinched or shorting out .


– Motor Dia. : 50*10mm

– Shaft size: 4mm

– Weight: 80g

– KV(rpm/v): 360KV

– Battery: 2-6s Li-Po(6S Recommanded)

– ESC: 30~40A Capacity

– Motor Wire Cable Length : 40cm

– Best Matched with 14~15″ Carbon Prop’

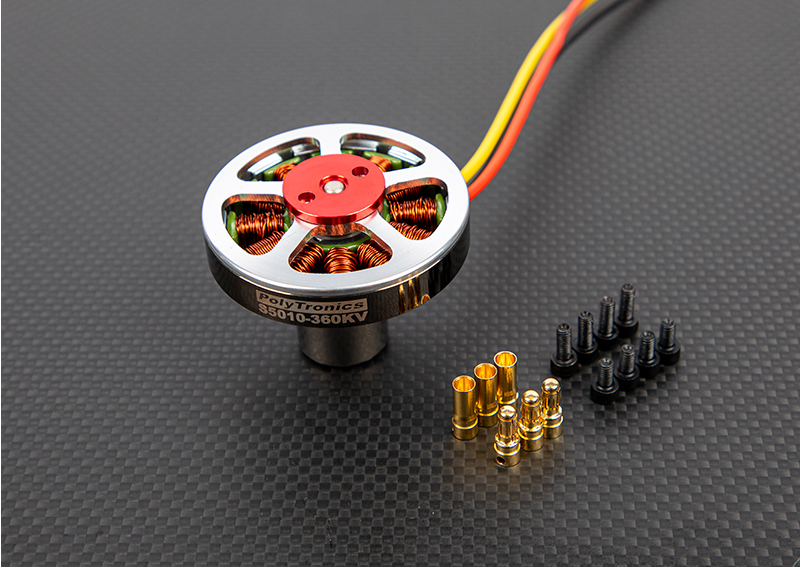

<제품 이미지>

MR 프롭용 전용 와셔가 포함되어 있습니다.
