Tarot 4108 380KV 멀티콥터용 브러쉬리스 모터

Li-Po 6셀(22.2V), KV380

모터중량  93G

프롭 : 12 ~ 15인치

TL68P07

39,800

Product ID: 5053 카테고리: 태그: , ,

Tarot 6S 380KV 4108 멀티콥터용 브러쉬리스 모터 TL68P07





TL68P07-2

Product description:

4108/380KV6S efficient multi-rotor disc brushless motor designed for four-and six-axis multi-rotor design, using high-precision CNC machining full production, the table looks flat and smooth trace, excellent balance. The new design of efficient turbofan cover, provides powerful airflow, high magnetic NdFeB rotor refined stator pressure reinforced with high-strength epoxy protective heat, 22P High Flux external rotor motor through a special balance correction, improved motor vibration problems common external rotation caused by poor balance, high-speed alloy steel motor shaft. Upper and lower lid with large size motor speed precision bearings with low friction torque, low power consumption, impact resistance, the instant high-speed radial support and other advantages. 4108/380KV6S new generation brushless motor has passed rigorous dynamic, static, magnetic properties, magnetic temperature demagnetization loss, exercise vibration, noise, load performance engineering technology demonstration. Continuation inherited TAROT brushless motor: long life, high efficiency, low power consumption, low noise, superior control and stability characteristics.

Product parameters:

Peripheral motor diameter: 46MM
Stator diameter: 40.6M
Stator Thickness: 8MM
Stator: 24 slots
Motor Poles: 22P
Diameter: 0.23MM
Gear shaft mounting diameter: ¢ 4MM
Motor height: 24MM
Motor shaft Full length: 32.50MM
Per volt Speed​​: 380 RPM / Volt
Motor Weight: 93G
Motor resistance: 135 mΩ
Load Current: 0.5A
Maximum thrust: 1620g
6S4108 brushless motor installation specifications: 27.7MM equilateral triangle
Propeller installation specifications: the main hole diameter 4mm, side hole diameter 3mm  ,center distance 12mm

TL68P07-3TL68P07-4TL68P07-5

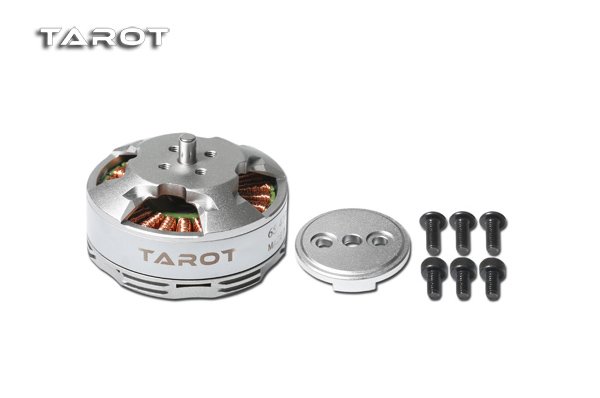

Specifications:

6S4108/380KV brushless motor 93G × 1
M3 × 6MM cup head screws × 3
M3 × 8MM round head screws × 2
Metal rotor mounting piece 2.5G × 1
