SUNNYSKY V2216 KV900 Motor

V2216, 900KV

V시리즈, 멀티콥터용

Lipo 2~4cell

39,900

1개 재고

Product ID: 4297 카테고리: 태그: , ,

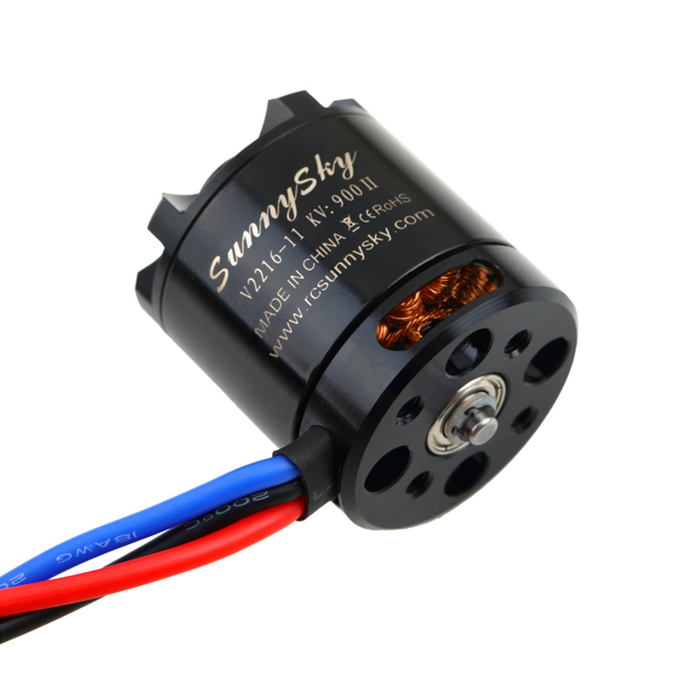

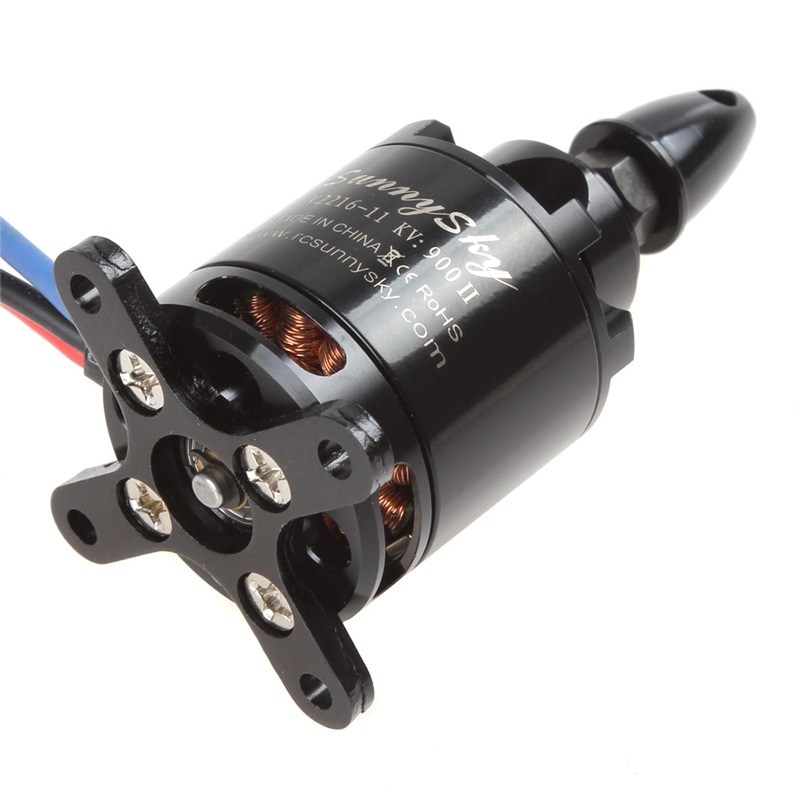

SUNNYSKY V2216 KV900 Outrunner Brushless Motor





Features :

The prop adaptor of this series is mounted to the motor can with 3 screws, it gives better centralization and balance.

– Long-life Japanese NMB ball bearings.
– Efficient Japanese Kawasaki stator steel
– Rare earth magnets stable up to 180℃
– Oxygen free pure copper wires
– CNC machined aluminum case
– Silicone wire leads
– Patented balance techniques
– Unique wiring method



Product Details:

-Model: V2216-10 900KV
-Stator diameter: 22mm
-Stator length: 16mm
-Shaft diameter: 3mm (no exposing part)

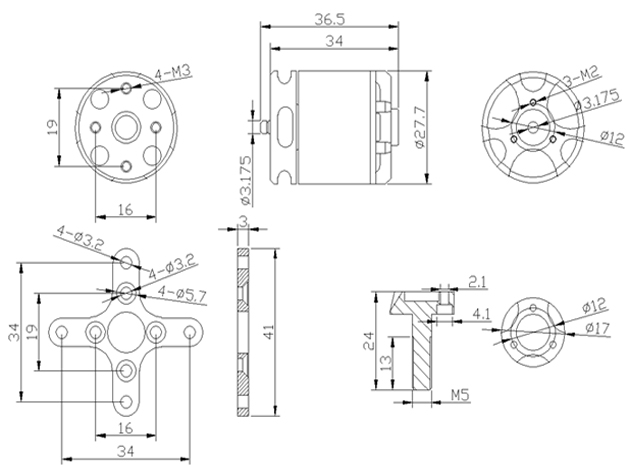

-Motor size: Φ27.8×34mm (diameter x length)
-Weight: 75g
-Idle current @ 10V: 0.4A
-Cell number: 2-4S
-Max current: 20A
-Max power: 210W
-Max efficiency current: 5-17A, >80%
-Internal resistance: 135mΩ
-Prop adaptor shaft diameter: 5mm

V2216-900KV-5

V2216-900KV-6
