ALIGN G3-GH 3 Axis Gimbal for Panasonic GH3/GH4(R2)

G3-GH 3축 Gimbal

Panasonic GH3/GH4 or 표 참조

무게 : 약 1,180g

1,498,000

Product ID: 3319 카테고리: 태그: , , , , , ,

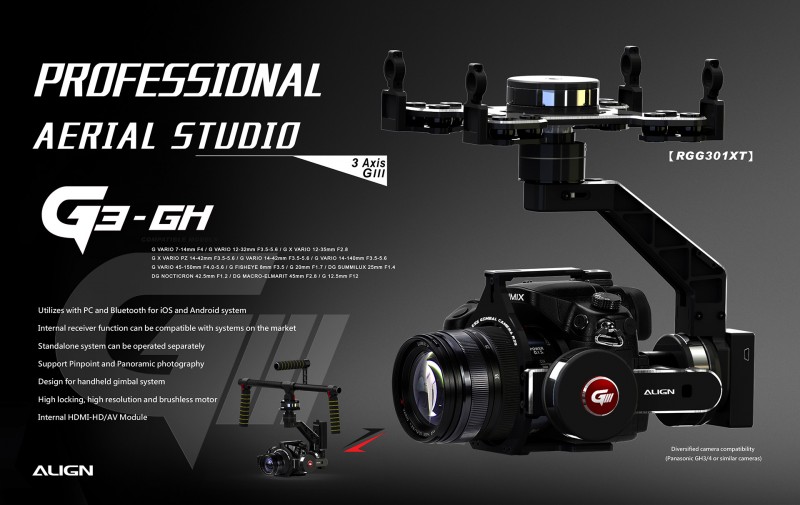

Align G3-GH 파나소닉 GH3/GH4 3축 Gimbal





G3GH-1



Align G3 gimbal features an advanced control system with superior computational power. The highly integrated design allows for quick conversion between multicopter use and hand held use. Adjustable balance point on all 3 axis for greater camera compatibility, while the high precision brushless motors provide excellent agility and stability. Built in HDMI/AV converter and RC receiver connectivity. Supports programmability through PC interface, or connectivity to iOS/Android smartphones through Bluetooth. Equipped with automatic calibration function during power up. Supports single RC transmitter mode through APS-M, or independent remote control of the gimbal through a dedicated RC transmitter, as well as remote shutter trigger and video start/stop control to capture the optimal footage through precise framing.

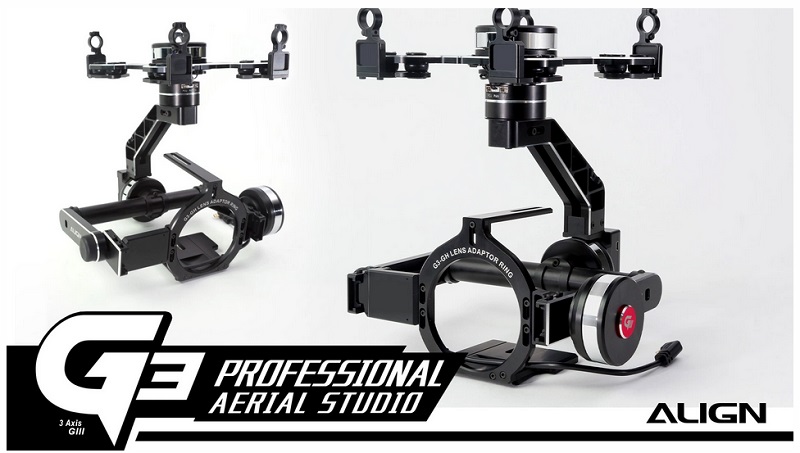

G3GH-10

G3GH-2

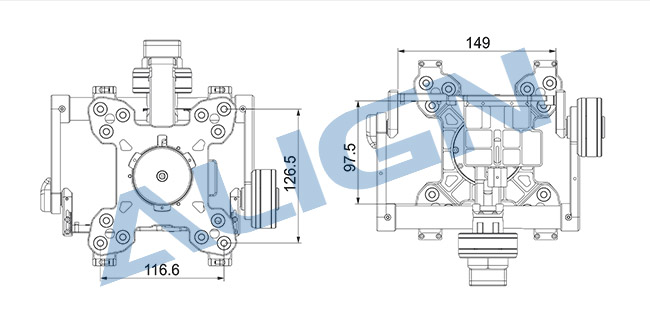

Mechanical Dimension

G3GH-11

G3GH-12

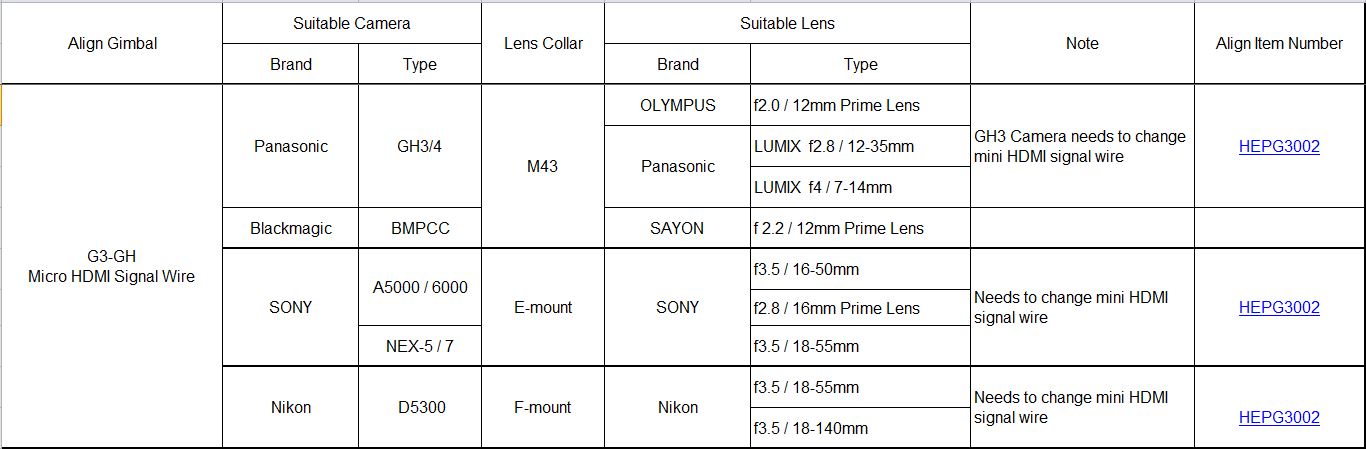

G3-GH Gimbal/Camera/Lens Compatibility List (For Reference)



G3GH-13



Gimbal Controller Specification

  • Input Voltage: DC 12V(3S)
  • Current Draw: <500 mA@12V
  • Maximum Control Range:
    • PAN 360°
    • ROLL ±30°
    • TILT 90°
  • Maximum Control Rotation Rate:
    • PAN 60°/s
    • ROLL 60°/s
    • TILT 60°/s
  • Temperature Range: -20~80°C
  • Voltage Output:5V / 0.5A
  • Dimension: 59.5x35x16.4mm



HDMI-AV(Digital to Analog) Converter Specification

  • Input Voltage: DC 12V(3S)
  • Power Consumption: 1800mW (12V/150mA)
  • Compatible Cameras: G3-GH: Panasonic GH3/GH4、Sony A6000 or equivalent.
  • Supported Output Format: 1800mW/ 50HZ/60HZ;720P/ 50HZ/60HZ;576P/ 50HZ/60HZ;480P/ 50HZ/60HZ;1080I/ 50HZ/60HZ;576I/ 50HZ/60HZ;480I/ 50HZ/60HZ
  • Video Output Format: NTSC(480I)
  • Signal Output Resistance: 75Ω
  • Temperature Range: -20~65°C (-4 ~ 149°F)
  • Dimension: 42x32x7mm

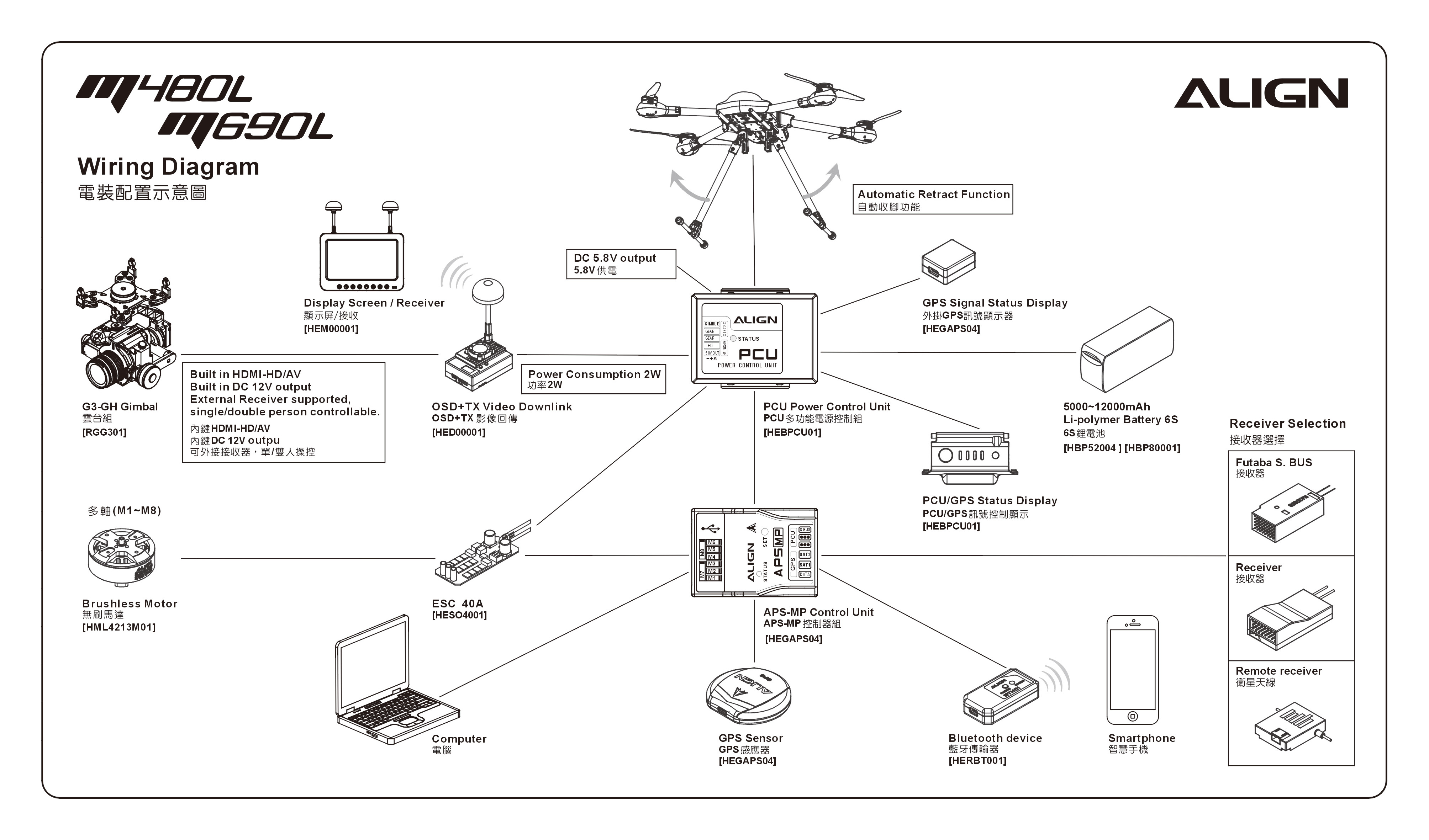

각 부가장치별 연결도

Align-wiring-diagram



G3-GH 사용자 메뉴얼

짐발 파라미터

Align 다운로드

Aling Gimbal Q&A
