5.8Ghz 고정밀 크로바 안테나

, ,

19,000

Product ID: 3862 카테고리: , ,

5.8Ghz 고정밀 크로바 안테나

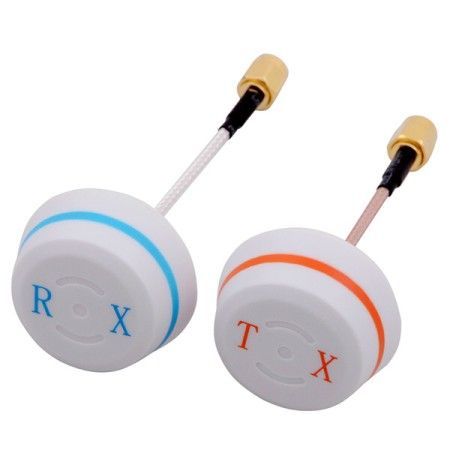

58antenna-3



Features :

High precision circular control,  greatly improve the range and covering of your wireless video transmitting and receiving system.

This antenna works best at 5645MHz (usually channel 4 for conventional 8 channels TX, and channel 3-4 for 32 channel TX).

* There is no antenna can achieve best performance on all different channels, there must have one fixed frequency on which it works best, and the farther the frequency away from this fixed frequency, the weaker the signal becomes.
We have the Ch8  5645MHz and Ch4 5645MHz two types currently, you can choose the one close to your preferred frequency for better performance.  In other words, this antenna also works at other channels other than the specified channel, but the closer your frequency to the fixed frequency, the better the transmitting/receiving performance.





Details :

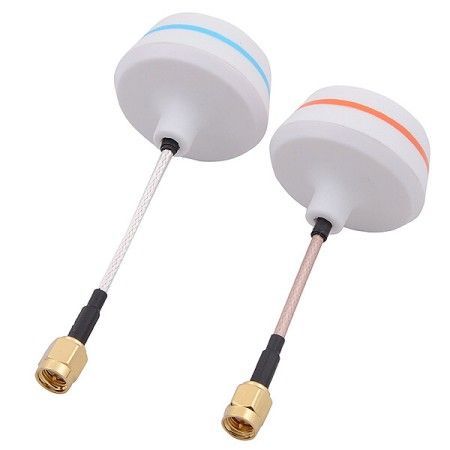

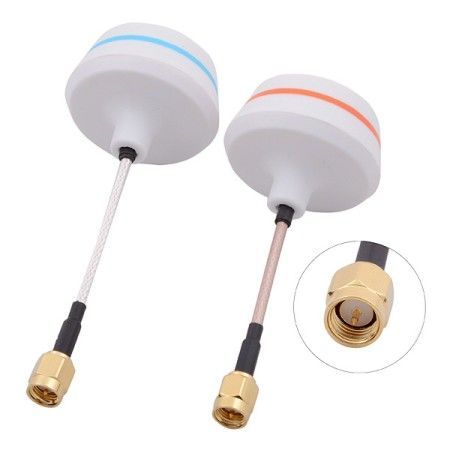

High Precision 5.8 GHz 5645MHz  Ch4 Circular Polarized Antenna Pair – SMA Plug

Gain: 2.0 – 2.5dBi

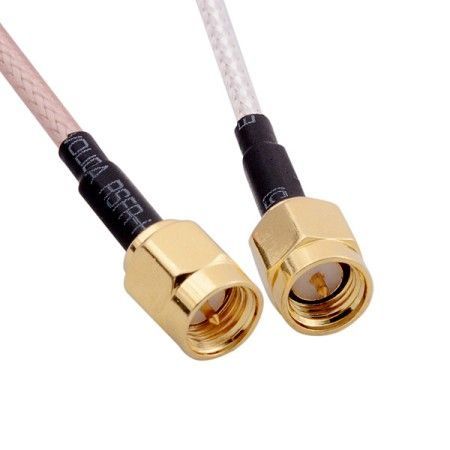

Antenna connector: SMA plug (antenna side)
Standing wave ratio(SWR): <1.5
Best working frequency: 5645MHz (usually channel 4 for conventional 8 channels TX, and channel 3-4 for 32 channel TX).
Weight: 12.5g (pair)
Direction: all direction

* This antenna also works at other channels other than the specified channel, but the closer your frequency to the fixed frequency, the better the transmitting/receiving performance.

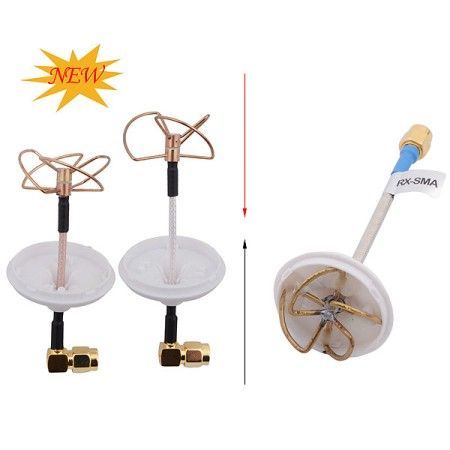

58antenna-5
